Advanced Robotic Vision System (ARV)


Image Credit: ViTrox

Development of a new design language, that represents ViTrox’s true capabilities, as one of the world-leading automated machine vision inspection solution providers.

Each element of V9i was considered in terms of functionality, usage and serviceability. For the main enclosure, it is a crucial that the internal components have to be easily accessible in the production line, for instant serviceability and improve production efficiency. The whole user experience was considered, not only from the end user perspective, but also from the maintanence and manufacturing assembly perspective. Inspired by ViTrox new campus look, the minimalist design language was created for ViTrox’s new SKUs, having the V9i as the first robotic vision system to carry the new design language.

Project Scope

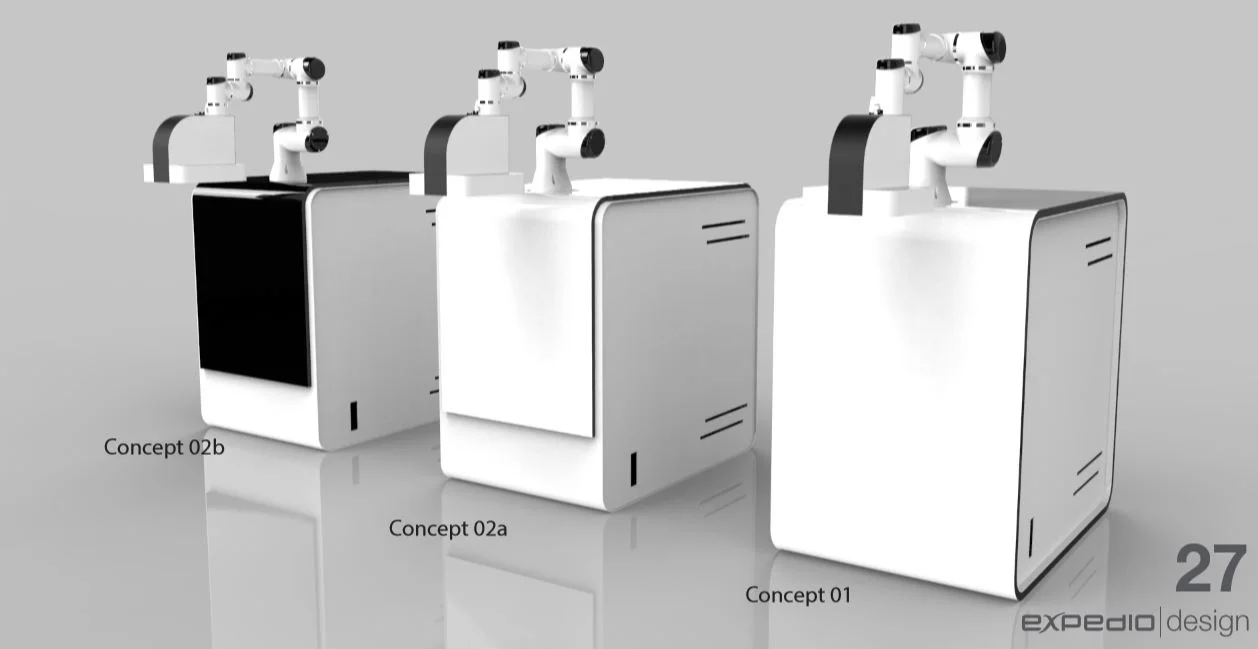

Industrial Design - Design Language Development, Concept Sketches & 3D Renderings.
